Hotbeads Mill 98 BOYEE Brand
Company Advantages
· BOYEE (SHENZHEN) INDUSTRIAL TECHNOLOGY CO., LTD can offer all sizes of beads mill.
· The product is reliable with consistent performance.
· BOYEE (SHENZHEN) INDUSTRIAL TECHNOLOGY CO., LTD is accelerating the pace of development in beads mill field.

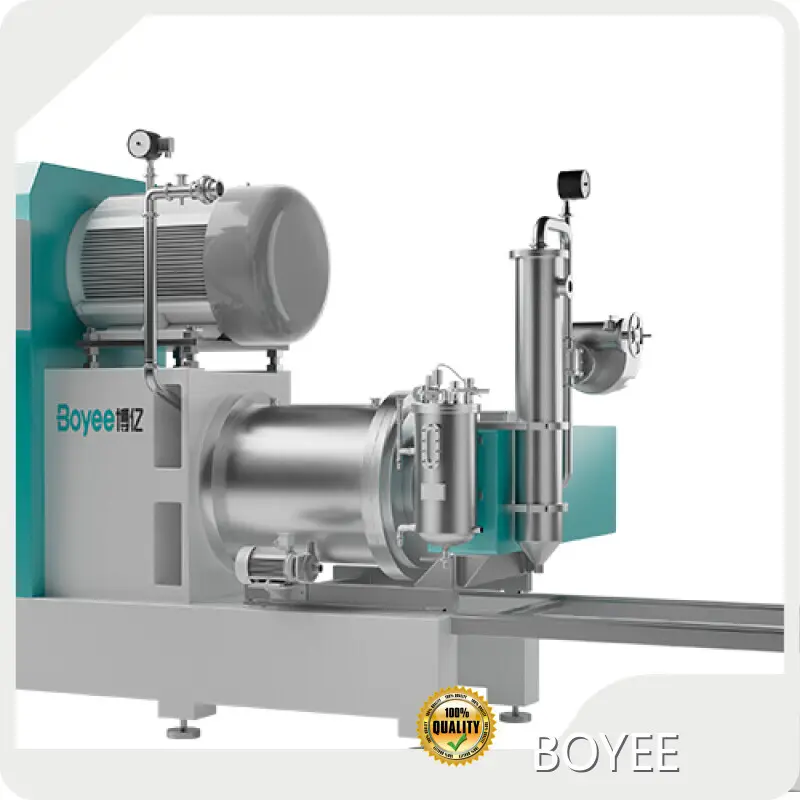

Product Display
Product Description
Specially designed for the grinding and dispersion of low viscosity materials, this mill allows for independent operation of material grinding and separation, resulting in finer grinding. You can choose between Boyee's TurboMax turbo or rod pin grinding system.
Product Advantages
● Screen-free separation system design.
● Independent operation of material grinding and separation.
● The minimum grinding medium can be 0.05mm
● Optional turbo and rod pin grinding systems
● Suitable for low viscosity materials
Product Parameters
| Model | Volume（L） | Power（kW） | Speed（r/min） | Media diameter（mm） | Weight（kg） | Size（mm） |
| LMM-3L | 3 | 7.5 | 0-1450 | 0.1-1 | 800 | 1400×1100×1680 |
| LMM-10L | 10 | 18.5 | 0-1460 | 0.05-1 | 1500 | 1800×1200×1550 |
| LMM-30L | 30 | 45 | 0-1000 | 0.05-1 | 2100 | 1800×1300×1800 |
| LMM-60L | 58 | 75 | 0-776 | 0.05-1 | 2800 | 3290×1478×1950 |
| LMM-90L | 98 | 75-90 | 0-776 | 0.05-1 | 3377 | 3290×1478×1950 |
| LMM-150L | 120-180 | 160 | 0-627 | 0.05-1 | 5600 | 4500×1700×2400 |
| LMM-400L | 400 | 315 | 0-927 | 0.05-1 | 8600 | 4600×1600×2400 |
Product Features
Featuring a high conversion rate grinding system, this mill can be equipped with Boyee TurboMax turbo or rod pin grinding system. With a minimum grinding media size of 0.05mm, it incorporates an innovative screen-free separation system design, resulting in finer grinding fineness and preventing material blockages.
Product Application
Faqs
The cooling system of a bead mill is an important feature that helps to maintain a consistent temperature during the milling process. Here are some details about the cooling system:
Bead mills generate a significant amount of heat during operation, which can affect the quality of the product and the performance of the equipment. Therefore, a cooling system is necessary to regulate the temperature of the mill and prevent overheating.
The cooling system typically consists of a cooling jacket or chamber that surrounds the milling chamber and a coolant, such as water or a glycol solution, that circulates through the jacket to absorb heat.
Some bead mills have a built-in cooling system, while others may require an external chiller or cooling tower to provide the necessary cooling.
The temperature of the coolant can be controlled using a thermostat or temperature controller, which adjusts the flow rate of the coolant to maintain a set temperature.
The efficiency of the cooling system can be affected by several factors, including the flow rate of the coolant, the temperature of the coolant, and the design of the cooling jacket.
Proper maintenance of the cooling system is important to ensure that the equipment operates at optimal performance. This includes regularly cleaning and flushing the cooling system to prevent buildup of contaminants or scale, and replacing worn or damaged parts as needed.
The cooling system of a bead mill is an important part of the machine that helps to maintain a stable temperature during the milling process. The cooling system prevents overheating of the grinding chamber, which can affect the quality of the final product.
There are different types of cooling systems that can be used in a bead mill. The most common ones are water-cooling and air-cooling systems. Water-cooling systems are generally more effective at dissipating heat, but they require a constant supply of water, which can be a challenge in some environments. Air-cooling systems are simpler and more energy-efficient, but they may not be sufficient for high-intensity milling operations.
The effectiveness of the cooling system depends on several factors, such as the type of coolant used, the flow rate of the coolant, the temperature of the coolant, and the size and design of the cooling channels. It is important to choose a cooling system that is appropriate for the specific milling application and to monitor the temperature of the grinding chamber regularly to ensure that it stays within the desired range.
Some bead mills may also be equipped with a temperature control system that allows the operator to adjust the temperature of the coolant based on the requirements of the milling process. This can help to optimize the efficiency and quality of the milling operation.
Company Features
· BOYEE (SHENZHEN) INDUSTRIAL TECHNOLOGY CO., LTD has years of involvement in manufacturing beads mill. We are gradually growing up into one of the most trustworthy manufacturers.
· Under the international ISO 9001 quality management system, the factory implements rigorous control over the production. All of the incoming materials and parts are required to be checked and tested to guarantee high quality.
· Our company understands the global nature of today’s manufacturing and we are ready to support customers' needs. Our products and service will always be custom-tailored to meet these needs.
Application of the Product
Multiple in function and wide in application, beads mill can be used in many industries and fields.
Based on customers' specific situations and needs, BOYEE provides comprehensive and reasonable solutions.
