NMM Beads Mill Large Flow Screen Type Nano Bead Mill Sand Mill 10L
High-flow and high-efficiency grinding and dispersion, featuring a screen-based structural design that eliminates the traditional problem of blockages.

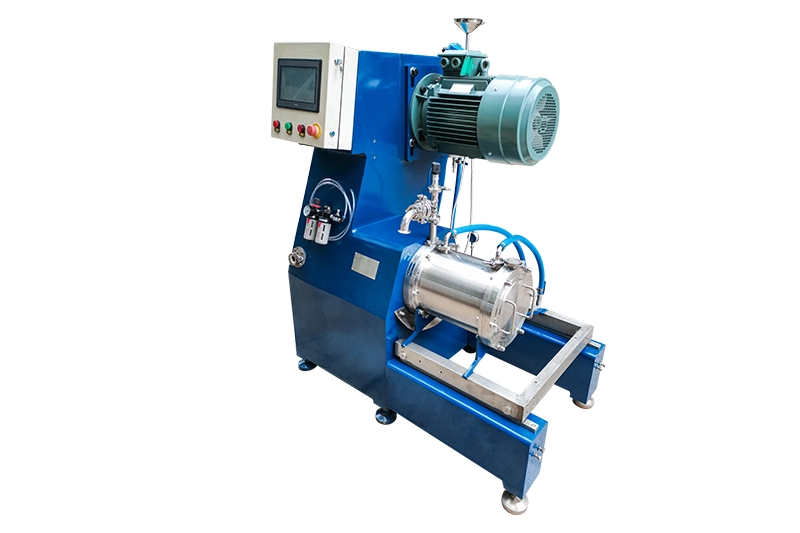

Product Display
Product Description
Specially designed for grinding and dispersion of high viscosity materials, this mill features two grinding systems that result in finer quality and precision. It helps reduce production costs and improves efficiency.
Product Advantages
● Exceptional capability in handling high viscosity materials.
● Widely used in a variety of materials on the market
● The equipment has stable performance and long service life
● Optional turbo-style and rod pin grinding systems
● Ceramic, polymer and alloy components are available
Product Parameters
| Model | Volume （L） | Power （KW） | Speed （r/min） | Mediadiameter （mm） | Weight （kg） | Size （mm） |
| NMM-3L | 3 | 7.5 | 0-1450 | ≥0.2 | 800 | 1400×1100×1680 |
| NMM-10L | 10 | 18.5 | 0-1460 | ≥0.2 | 1280 | 1800×1200×1550 |
| NMM-30L | 30 | 45 | 0-1000 | ≥0.2 | 1850 | 1800×1300×1800 |
| NMM-60L | 58 | 75 | 0-776 | ≥0.2 | 2480 | 3290×1478×1950 |
| NMM-90L | 98 | 75-90 | 0-776 | ≥0.2 | 3050 | 3290×1478×1950 |
| NMM-150L | 120-180 | 160 | 0-627 | ≥0.2 | 5280 | 4500×1700×2400 |
| NMM-400L | 400 | 280-315 | 0-460 | ≥0.2 | 8600 | 4600×1600×2400 |
Product Features
High-flow and high-efficiency grinding and dispersion, featuring a screen-based structural design that eliminates the traditional problem of blockages.
Product Application
Faqs
Here are several factors that can affect the efficiency of a bead mill:
Bead size: The size of the grinding beads used in the bead mill can impact its efficiency. Choosing the right size beads for the application can help ensure optimal grinding performance.
Bead material: The material used to make the grinding beads can also impact the efficiency of the bead mill. Different materials have different wear and fracture characteristics, which can affect their performance.
Agitation speed: The speed at which the bead mill is agitated can impact its efficiency. Operating at the optimal speed can help ensure that the grinding beads are evenly distributed and that the material being processed is exposed to the grinding media for the right amount of time.
Residence time: The amount of time the material spends in the bead mill can also impact its efficiency. Ensuring that the material is processed for the appropriate amount of time can help optimize grinding performance.
Temperature: The temperature of the material being processed can also affect the efficiency of the bead mill. Temperature changes can impact the viscosity of the material, which can impact grinding performance.
Equipment design: The design of the bead mill can also impact its efficiency. Factors such as the size and shape of the grinding chamber, the number and arrangement of grinding beads, and the flow rate of the material being processed can all impact grinding performance.
Material feed rate: The rate at which material is fed into the bead mill can impact its efficiency. Overfeeding can lead to excessive wear and reduced grinding efficiency, while underfeeding can lead to inadequate grinding and poor product quality.
Material composition: The composition of the material being processed can also affect the efficiency of the bead mill. Materials with high hardness or toughness may require more aggressive grinding conditions to achieve the desired particle size.
Bead density: The density of the grinding beads can also affect the efficiency of the bead mill. Higher density beads can provide more energy transfer to the material being processed, which can improve grinding efficiency.
Bead-to-material ratio: The ratio of grinding beads to material being processed can impact grinding efficiency. Using too few beads can result in poor grinding performance, while using too many beads can lead to excessive wear and reduced bead life.
Cooling system: The efficiency of the bead mill can be impacted by the effectiveness of the cooling system. Maintaining appropriate cooling can help prevent overheating and ensure optimal grinding performance.
By taking these factors into consideration and making appropriate adjustments to the bead mill, you can help optimize its efficiency and ensure optimal grinding performance.
