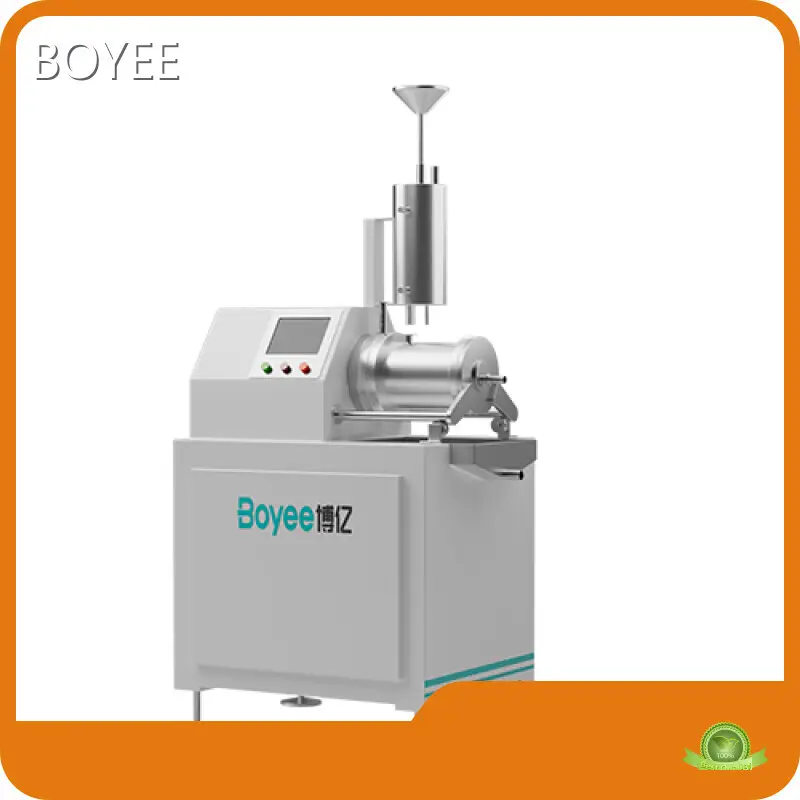

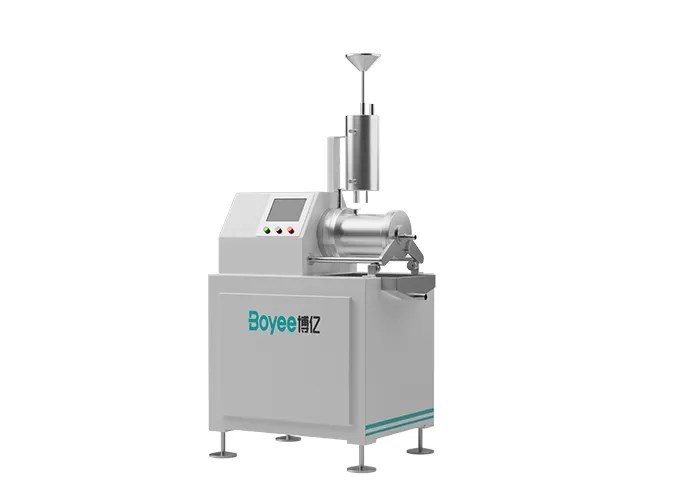

Horizontal Sand Mill 0-2200 by BOYEE

Rod and pin type bead mills and turbine type bead mills are two different types of bead mills that operate based on different principles. Here are some of the key differences between these two types of bead mills:

Grinding mechanism: Rod and pin type bead mills use a grinding mechanism that involves the rotation of rods or pins within the grinding chamber, which causes the grinding media to move in a highly turbulent manner and grind the material through shear and impact forces. In contrast, turbine type bead mills use a grinding mechanism that involves the rotation of a turbine within the grinding chamber, which generates high-speed vortex flows that grind the material through shear and impact forces.

Grinding efficiency: Rod and pin type bead mills are generally more efficient at grinding coarse particles and producing narrow particle size distributions, due to the intense grinding action and high-density packing of the grinding media. In contrast, turbine type bead mills are generally more efficient at grinding fine particles and producing wide particle size distributions, due to the highly turbulent and chaotic flow patterns generated by the turbine.

Energy consumption: Rod and pin type bead mills typically require more energy to operate than turbine type bead mills, due to the higher density of the grinding media and the more intense grinding action. However, the specific energy consumption can vary depending on the specific design and operating parameters of the bead mill.

Material compatibility: Both types of bead mills are suitable for processing a wide range of materials, including organic and inorganic pigments, dyes, fillers, and various types of nanoparticles. However, the specific design and operating parameters of the bead mill can affect the compatibility and performance of the material being processed.

Applications: Rod and pin type bead mills are often used for high-energy grinding of coarse particles and producing narrow particle size distributions, and are commonly used in the paint, ink, and coating industries. Turbine type bead mills are often used for fine grinding of particles and producing wide particle size distributions, and are commonly used in the pharmaceutical, cosmetic, and food industries.

Grinding media: Rod and pin type bead mills typically use high-density grinding media such as ceramic or steel rods or pins, while turbine type bead mills typically use low-density grinding media such as glass beads or zirconia beads. The choice of grinding media can affect the grinding efficiency and particle size distribution of the material being processed.

Grinding chamber design: Rod and pin type bead mills typically have a cylindrical or conical grinding chamber, while turbine type bead mills typically have a flat or curved grinding chamber with a central turbine. The design of the grinding chamber can affect the flow patterns and turbulence within the chamber, and thus affect the grinding efficiency and particle size distribution.

Cooling system: Rod and pin type bead mills often have a cooling jacket around the grinding chamber to maintain the temperature of the material being processed and prevent overheating, while turbine type bead mills often have a cooling system that circulates coolant through the grinding chamber to maintain the temperature and prevent the buildup of heat.

Agitation system: Rod and pin type bead mills often have a stationary outer shell and a rotating inner shaft with attached rods or pins, while turbine type bead mills typically have a rotating turbine that generates high-speed vortex flows within the grinding chamber. The agitation system can affect the intensity and efficiency of the grinding action.

Particle size control: Rod and pin type bead mills often rely on external classification systems such as screens or centrifugal separators to control the particle size distribution of the material being processed, while turbine type bead mills often have internal classification systems such as dynamic gap separators or rotor-stator systems that can control the particle size distribution more precisely.

Grinding pressure: Rod and pin type bead mills apply high pressure to the grinding media due to the packing density of the media, which can result in a high level of wear and tear on the mill components. In contrast, turbine type bead mills apply lower pressure to the grinding media due to the low-density packing, which can result in lower wear and tear on the mill components.

Flow rate: Turbine type bead mills can handle higher flow rates compared to rod and pin type bead mills, which can result in higher production throughput.

Maintenance requirements: Rod and pin type bead mills typically require more maintenance compared to turbine type bead mills due to the higher wear and tear on the mill components, such as the rods or pins. Turbine type bead mills are typically more robust and require less maintenance.

Scale-up: Rod and pin type bead mills are typically easier to scale up from laboratory to production-scale compared to turbine type bead mills, due to the simpler design and fewer variables affecting the grinding performance.

Cost: The cost of rod and pin type bead mills and turbine type bead mills can vary widely depending on the specific design and features of the mill. However, rod and pin type bead mills are generally more expensive compared to turbine type bead mills due to the higher density and cost of the grinding media and the more complex design of the mill components.

Energy consumption: Rod and pin type bead mills typically require more energy compared to turbine type bead mills due to the higher packing density of the grinding media, which results in more friction and wear. Turbine type bead mills, on the other hand, use lower density grinding media and rely more on high-speed turbulence to achieve efficient grinding, which can result in lower energy consumption.

Material compatibility: Rod and pin type bead mills are typically better suited for processing hard and abrasive materials that require high grinding pressure and impact forces, such as ceramic powders and minerals, while turbine type bead mills are better suited for processing soft and friable materials that require gentle grinding and low impact forces, such as pharmaceuticals and biological materials.

Particle size range: Rod and pin type bead mills can typically achieve a broader particle size range compared to turbine type bead mills, due to the ability to use larger grinding media and the availability of external classification systems. Turbine type bead mills, on the other hand, can achieve a narrow and consistent particle size distribution due to the use of internal classification systems and high-speed turbulence.

Contamination: Rod and pin type bead mills can be prone to contamination from the wear and tear of the mill components and the grinding media, which can affect the purity and quality of the processed material. Turbine type bead mills are typically less prone to contamination due to the use of low-density grinding media and the ability to clean the mill components more easily.

In summary, the choice of bead mill type depends on a variety of factors, including the material being processed, the desired particle size distribution, the required throughput and grinding efficiency, and other processing requirements. Rod and pin type bead mills and turbine type bead mills have different strengths and weaknesses in terms of their grinding mechanism, grinding efficiency, energy consumption, material compatibility, applications, and technical features, and the optimal choice of bead mill type may vary depending on the specific application.

Rod and pin type bead mills:

• High packing density of grinding media

• High grinding pressure and impact forces

• Broad particle size range

• Good for hard and abrasive materials

• Higher energy consumption

• Higher maintenance requirements

• Easier to scale up

• More expensive

Turbine type bead mills:

• Low packing density of grinding media

• Relies on high-speed turbulence for grinding

• Narrow and consistent particle size distribution

• Good for soft and friable materials

• Lower energy consumption

• Lower maintenance requirements

• More difficult to scale up

• Less expensive

The optimal choice of bead mill type depends on the specific material properties and processing requirements, and a thorough evaluation of the technical features and performance characteristics of each type of bead mill is important to make an informed decision.
