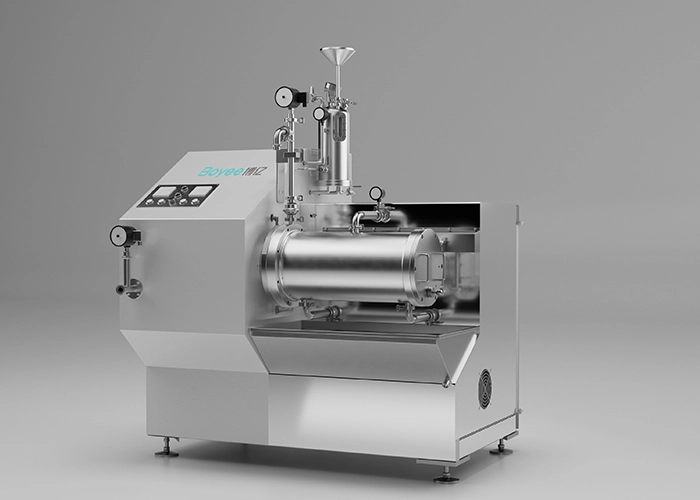

BYZr Hollow shaft Ceramic Turbine Bead Mill 3L

BYZr Hollow shaft ceramic turbo Bead Mill, equipped with the independently developed TurboMax turbine grinding system by Boyee. The built-in hollow shaft of the equipment helps reduce material consumption. Together with a high-performance cooling system and an automated control system, it enables continuous material processing and discharge, thereby enhancing production efficiency.

    oops...!

    no product data.

    Go to homepage

    Product Display

    BYZr-1
    BYZr-1
    BYZr-3L (2)
    BYZr-3L (2)
    BYZr-3L-实心轴
    BYZr-3L-实心轴
    BYZr-3L不锈钢

    Product Description

    The BYZr model can be equipped with Boyee’s independently developed PurCeram all-ceramic technology, which utilizes ceramic structures from the rotor to the grinding chamber. This design eliminates the risk of metal ion contamination on the materials, ensuring their purity and extending the equipment's lifespan and maintenance cycle.

    Product Advantages

    ● The turbo structure design makes the grinding material more pure and fine

    ● Boyee's innovative discharge separation system reduces the occurrence of screen clogging.

    ● The grinding components are made of a fully ceramic structure, ensuring no contamination and low energy consumption.

    ● The built-in hollow shaft minimize material consumption.

    ● Unique cooling system design

    BYZr-3L-压缩

    Product Parameters

    Model Volume (L) Power (KW) Speed (r/min) Media diameter (mm) Weight (kg) Size (mm)
    BYZr-3L 2.2 7.5 0-1450 0.3-1 468 1200×1050×1450
    BYZr-15L 11 30 0-1860 0.3-1 1205 1600×1350×1850
    BYZr-30L 22 37-45 0-1325 0.3-1.2 1425 1750×1350×1850

    Product Features

    BYZr Hollow shaft ceramic turbo Bead Mill, equipped with the independently developed TurboMax turbine grinding system by Boyee. The built-in hollow shaft of the equipment helps reduce material consumption. Together with a high-performance cooling system and an automated control system, it enables continuous material processing and discharge, thereby enhancing production efficiency.

    Product Application

    打印油墨
    Ink
    打印墨水
    Inkjet
    喷墨墨水
    Printing ink

    Faqs

    Can the operation of the bead mill achieve zero failure?

    It is difficult to achieve zero failure in any operation, including the operation of a bead mill. However, it is possible to minimize the occurrence of failures through proper maintenance, regular inspections, and adherence to operating parameters. Some of the factors that can contribute to failures include inadequate maintenance, improper use, poor quality of materials, and operator error. To reduce the likelihood of failures, it is essential to follow the manufacturer's instructions for operation and maintenance, use high-quality materials, and properly train operators to use the equipment. Additionally, regular inspections and preventive maintenance can help identify and address potential issues before they lead to failures.


    There are several ways to minimize the occurrence of failures in bead mill operations:

    Regular maintenance and inspection: Conducting regular maintenance and inspection can help identify potential problems before they escalate into major issues.

    Proper operation and handling: Ensure that the bead mill is being operated within its design limits and that the operators are following proper handling procedures.

    Quality control: Implementing quality control measures such as using high-quality raw materials and checking the finished product can reduce the likelihood of failures.

    Training and education: Providing proper training and education to the operators and maintenance personnel can help improve their skills and knowledge, reducing the likelihood of errors.

    While achieving zero failure may be difficult, these measures can help minimize the occurrence of failures in bead mill operations.
