Latestlab Horizontal Bead Mill BOYEE Manufacture 1
Latestlab Horizontal Bead Mill BOYEE Manufacture 2
Latestlab Horizontal Bead Mill BOYEE Manufacture 3
Latestlab Horizontal Bead Mill BOYEE Manufacture 4
Latestlab Horizontal Bead Mill BOYEE Manufacture 1
Latestlab Horizontal Bead Mill BOYEE Manufacture 2
Latestlab Horizontal Bead Mill BOYEE Manufacture 3
Latestlab Horizontal Bead Mill BOYEE Manufacture 4

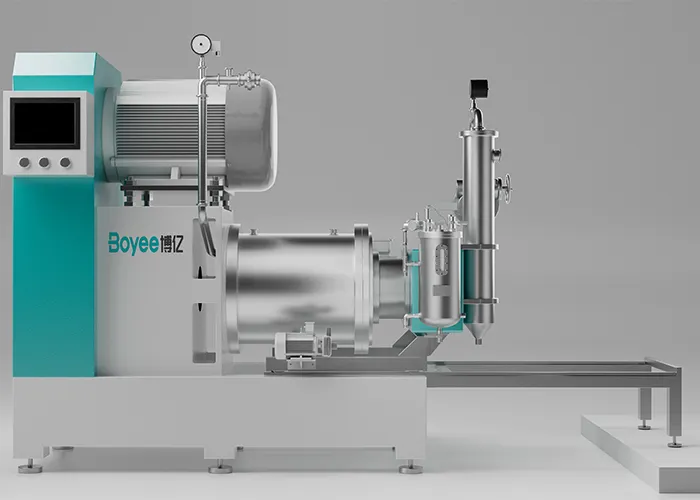

Latestlab Horizontal Bead Mill BOYEE Manufacture

Size (mm):
3290×1478×1950
Weight (kg):
3377
Media diameter (mm):
0.05-1
Power (KW):
75-90
Model:
LMM-90L
Inquiry

Product Display

LMM-90L离心分离 (1)
LMM-90L离心分离 (1)
LMM-90L离心分离 (5) (2)
LMM-90L离心分离 (5) (2)
LMM-90L离心分离 (6)
LMM-90L离心分离 (6)
产品详情1 (2)

Product Description

Specially designed for low viscosity ultra-fine grinding and dispersion, equipped with dual power, so that the material grinding and separation of independent operation, no blockage, excellent cooling performance, reduce equipment losses and improve production efficiency

Product Advantages

l Innovative centrifugal discharge

l Independent operation of material grinding and separation

l Applicable for low viscosity products

l Grinding media at a minimum of 0.05mm

l Optional turbine type and rod-pin type grinding system

l More refined grinding and dispersion effect

l Excellent cooling performance

l Various materials to meet individual needs

l Easier to be operated and cleaned

产品详情2 (2)

Product Parameters

Model Volume(L) Power(kW) Speed(r/min) Media diameter(mm) Weight(kg) Size(mm)
LMM-3L 3 7.5 0-1450 0.1-1 800 1400×1100×1680
LMM-10L 10 18.5 0-1460 0.05-1 1500 1800×1200×1550
LMM-30L 30 45 0-1000 0.05-1 2100 1800×1300×1800
LMM-60L 58 75 0-776 0.05-1 2800 3290×1478×1950
LMM-90L 98 75-90 0-776 0.05-1 3377 3290×1478×1950
LMM-150L 120-180 160 0-627 0.05-1 5600 4500×1700×2400
LMM-400L 400 315 0-927 0.05-1 8600 4600×1600×2400

Product Features

Our LMM series sand mill helps dispel frets over clogging the separation net during continuous running of the operation.

The LMM series innovatively applies a filter-free separation system design to separate materials and grinding materials in a dynamic centrifugal manner. It can greatly improve stability and uniformity of discharge, and your worry over net clogging can be dispelled.

Product Application

MLCC
MLCC
硅碳负极
Silicon carbon negative electrode
化工
Chemical industry
金属氧化物
Metallic oxide
钠电池:钠电正极
Sodium battery

Faqs

How does the bead mill work?

The bead mill is a type of grinding equipment that works by using small beads or grinding media to reduce the particle size of a material. Here is a general overview of how a bead mill works:

-The material to be ground is placed in a container or vessel, called the grinding chamber, along with the grinding media. The grinding media can be made of various materials, such as glass, ceramic, or steel, and come in different sizes and shapes.

-The grinding chamber is then closed and sealed to prevent the material from escaping.

-The motor of the bead mill rotates the agitator shaft, which causes the grinding media to move and collide with each other and the material in the grinding chamber. This movement creates shear forces and impact forces that break down the material into smaller particles.

-As the material is ground and dispersed, it flows out of the grinding chamber and into a collection vessel, such as a tank or container.

-The particle size and dispersion of the material can be controlled by adjusting various parameters, such as the speed of the agitator shaft, the size and shape of the grinding media, and the residence time of the material in the grinding chamber.

Overall, the bead mill provides a highly efficient and effective method for grinding and dispersing a wide range of materials, including pigments, dyes, pharmaceuticals, and nanomaterials.

The grinding chamber of a bead mill typically has a cylindrical or conical shape and is filled with grinding media that is about 1-2 mm in diameter. The grinding media is usually made of glass, ceramic, or metal and can come in different shapes, such as spherical, cylindrical, or irregular. The grinding media is chosen based on the properties of the material to be ground and the desired particle size.

The material to be ground is introduced into the grinding chamber, along with a liquid, such as water or a solvent. The liquid serves as a carrier for the material and helps to distribute it evenly throughout the grinding chamber. The amount of liquid used depends on the viscosity of the material and the desired particle size.

The agitator shaft of the bead mill is typically equipped with discs or pegs that rotate at high speed, causing the grinding media to move and collide with each other and the material in the grinding chamber. The collisions create shear forces and impact forces that break down the material into smaller particles.

The size of the particles is determined by the residence time of the material in the grinding chamber, the speed of the agitator shaft, and the size and shape of the grinding media. The longer the material stays in the grinding chamber and the faster the agitator shaft rotates, the smaller the particle size.

As the material is ground and dispersed, it flows out of the grinding chamber and into a collection vessel, such as a tank or container. The liquid can be recycled back into the grinding chamber to ensure that the material is evenly distributed and to maintain a consistent particle size.

In summary, a bead mill works by using grinding media to create shear forces and impact forces that break down the material into smaller particles. The particle size can be controlled by adjusting various parameters, such as the speed of the agitator shaft, the size and shape of the grinding media, and the amount of liquid used.


Company Advantages

· BOYEE lab horizontal bead mill is designed to give strikingly intuitive user experiences.

· You may rest assured about the BOYEE brand quality.

· Excellent production and perfect after-sales service guarantee system are BOYEE (SHENZHEN) INDUSTRIAL TECHNOLOGY CO., LTD's high-quality commitments to every customer.


Company Features

· BOYEE (SHENZHEN) INDUSTRIAL TECHNOLOGY CO., LTD is a manufacturing enterprise that specializes in high-end export standard lab horizontal bead mill.

· We have a team of dynamic individuals with a passion for change management and depth in their respective areas of expertise. Also, they can keep up with the latest market trends.

· For years, we've been focusing on serving clients with our finest lab horizontal bead mill and thoughtful service. Get price!


Application of the Product

BOYEE's lab horizontal bead mill is widely used in the industry.

With a focus on Bead mill, BOYEE is dedicated to providing reasonable solutions for customers.
