Product details of the lab horizontal bead mill
Product Description
The design of lab horizontal bead mill shows a strong sense of art. As our QC team strictly and smoothly control the quality throughout the whole production process, the quality of the product is fully ensured. The lab horizontal bead mill produced by BOYEE is of high quality.

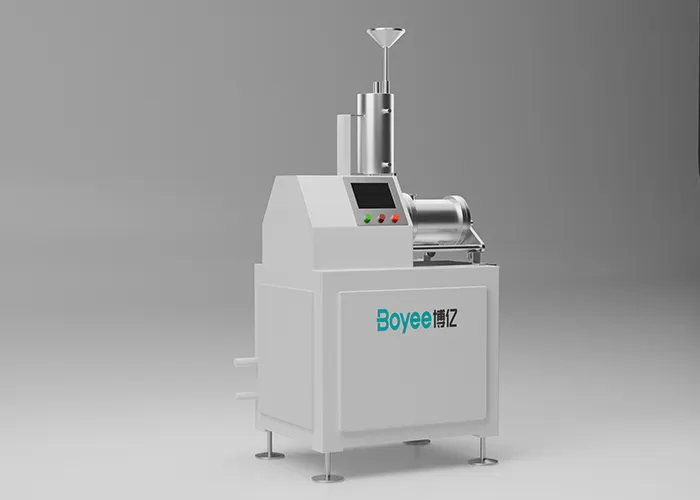

Product Display
Product Description
It can be equipped with Boyee patented TurboMax turbo and disc, as well as rod pin grinding systems, providing a finer and more uniform grinding result. It is suitable for grinding and dispersing high viscosity materials.
Product Advantages
● Suitable for grinding and dispersion of high viscosity materials
● Multiple options for grinding systems, enabling finer grinding.
● A variety of internal structural material options available to meet different material requirements.
● Ceramic, polymer and alloy materials are available
● Screen dynamic discharge system, large flow without clogging
Product Parameters
| Model | Volume（L） | Power（kW） | Speed（r/min） | Media diameter（mm） | Weight（kg） | Size（mm） |
| SW-5L | 4.5 | 15 | 0-2200 | ≥0.2 | 750 | 1800×1500×1650 |
| SW-10L | 11 | 18.5 | 0-1320 | ≥0.2 | 850 | 1870×1520×1670 |
| SW-30L | 34 | 37 | 0-1124 | ≥0.1 | 1300 | 2168×863×1415 |
Product Features
Three selectable grinding structures, equipped with a screen-based dynamic material discharge system that offers high flow rate without any blockages. This enhances both grinding and dispersion performance.
Product Application
Faqs
Rod-pin type bead mills, also known as rod-pin horizontal bead mills, have some distinct characteristics and applications compared to other types of bead mills. Here are some of the key features and applications of rod-pin type bead mills:
Grinding mechanism: Rod-pin type bead mills use a combination of rods and pins as the grinding media, which provides a more efficient and homogeneous grinding action compared to other types of bead mills. The rods and pins rotate at high speeds within the grinding chamber, causing the material to be ground by both shear and impact forces.
Narrow particle size distribution: Rod-pin type bead mills are particularly effective at producing narrow and uniform particle size distributions, due to the efficient grinding mechanism and the use of high-quality grinding media. This makes them suitable for a wide range of applications that require precise particle size control, such as inks, pigments, coatings, and pharmaceuticals.
High throughput: Rod-pin type bead mills are capable of achieving high throughput rates, due to the combination of efficient grinding action and the use of large-volume grinding chambers. This makes them suitable for large-scale production of high-quality dispersions and suspensions.
Versatility: Rod-pin type bead mills can be used for a wide range of materials and applications, including aqueous and solvent-based formulations, as well as high-viscosity materials. They are also suitable for processing heat-sensitive materials, due to the efficient cooling provided by the cooling jacket surrounding the grinding chamber.
Easy maintenance and cleaning: Rod-pin type bead mills are designed for easy maintenance and cleaning, with simple and accessible components that can be easily removed and replaced. This reduces downtime and increases productivity, as well as ensuring the long-term reliability and performance of the machine.
Grinding chamber design: The design of the grinding chamber in rod-pin type bead mills is typically optimized for maximum grinding efficiency and uniformity. The grinding chamber is often cylindrical in shape, with a cooling jacket surrounding the chamber to prevent overheating. The rods and pins are typically arranged in a staggered pattern, to ensure maximum contact with the material being ground.
Control and automation: Rod-pin type bead mills often come with advanced control and automation features, such as programmable settings, digital readouts, and real-time monitoring of key parameters such as temperature, pressure, and flow rate. This helps to ensure accurate and consistent grinding results, and allows for efficient optimization of the grinding process.
Size range and capacity: Rod-pin type bead mills are available in a range of sizes and capacities, to suit different application requirements. They can handle batch sizes ranging from a few milliliters up to several liters or more, and are capable of producing high-quality dispersions or suspensions with particle sizes in the submicron range.
Material compatibility: Rod-pin type bead mills are suitable for processing a wide range of materials, including organic and inorganic pigments, dyes, fillers, and various types of nanoparticles. They can also be used for grinding natural materials such as plant extracts, minerals, and ores.
Maintenance and cleaning: Rod-pin type bead mills are designed to be easy to maintain and clean, with simple and accessible components that can be easily removed and replaced. This helps to minimize downtime and ensure long-term reliability and performance of the machine. Regular cleaning and maintenance are important to prevent contamination and ensure consistent grinding results.
In summary, rod-pin type bead mills are characterized by their efficient grinding mechanism, narrow particle size distribution, high throughput, versatility, and easy maintenance and cleaning. They are suitable for a wide range of applications and materials, including inks, pigments, coatings, and pharmaceuticals, where precise particle size control and high-quality dispersions or suspensions are required. and come in a variety of sizes and capacities. Advanced control and automation features help to ensure accurate and consistent grinding results.
