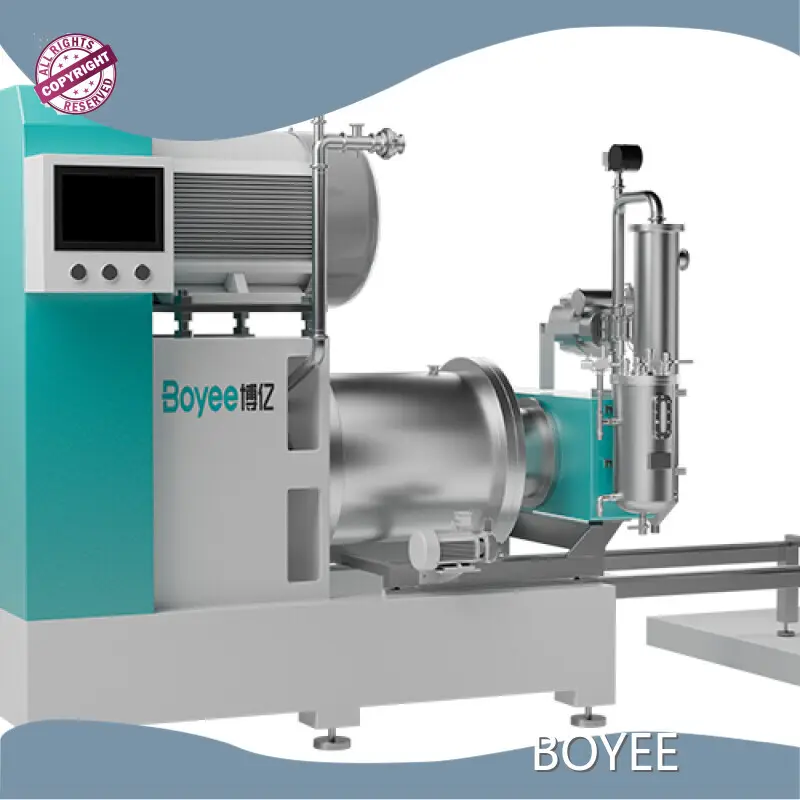

Hot Horizontal Bead Mill Manufacturers 0-1460 BOYEE Brand
Product Display
Product Description
The innovative screen-free separation system design, compatible with Boyee TurboMax turbo or rod pin grinding structure, enhances grinding efficiency and results in a narrower particle size distribution.
Product Advantages
● Innovative centrifugal discharge design
● Suitable for low viscosity materials
● Finer grinding and dispersion effect
● Optional turbo and rod pin grinding systems
● A variety of material options to meet individual needs, low wear, low cost
Product Parameters
| Model | Volume（L） | Power（kW） | Speed（r/min） | Media diameter（mm） | Weight（kg） | Size（mm） |
| LMM-3L | 3 | 7.5 | 0-1450 | 0.1-1 | 800 | 1400×1100×1680 |
| LMM-10L | 10 | 18.5 | 0-1460 | 0.05-1 | 1500 | 1800×1200×1550 |
| LMM-30L | 30 | 45 | 0-1000 | 0.05-1 | 2100 | 1800×1300×1800 |
| LMM-60L | 58 | 75 | 0-776 | 0.05-1 | 2800 | 3290×1478×1950 |
| LMM-90L | 98 | 75-90 | 0-776 | 0.05-1 | 3377 | 3290×1478×1950 |
| LMM-150L | 120-180 | 160 | 0-627 | 0.05-1 | 5600 | 4500×1700×2400 |
| LMM-400L | 400 | 315 | 0-927 | 0.05-1 | 8600 | 4600×1600×2400 |
Product Features
The dual-drive centrifugal separation method effectively improves the stability and uniformity of material and grinding media discharge, preventing any blockages.
Product Application
Faqs
Mechanical seals are an important component in bead mills and other machinery used for materials processing. Here are some common problems that can occur with mechanical seals and their solutions:
Leakage: This is one of the most common problems with mechanical seals. It can be caused by a variety of factors, including improper installation, wear and tear, or damage to the seal itself. To solve this problem, check the seal's installation, replace damaged parts, and ensure that the seal is properly lubricated.
Poor Lubrication: If the mechanical seal is not properly lubricated, it can cause damage to the seal and other components. This can lead to leakage and other issues. To solve this problem, ensure that the seal is properly lubricated and use high-quality lubricants. By addressing these common problems and following proper maintenance and installation procedures, you can help ensure the longevity and reliable operation of mechanical seals in bead mills and other machinery.
Overheating: Overheating of the mechanical seal can occur due to dry running or insufficient cooling. To solve this problem, ensure the pump is adequately cooled, and the seal is lubricated properly.
Excessive vibration: Excessive vibration can lead to mechanical seal failure, and it can be caused by an unbalanced rotor, a bent shaft, or a loose motor base. The solution is to balance the rotor, replace the bent shaft, or tighten the motor base.
Wear: Mechanical seals can wear over time due to continuous use and exposure to abrasive materials. The solution is to replace the worn-out components, lubricate the seal properly, and ensure proper alignment of the seal faces.
Cavitation: Cavitation can occur when there is a sudden drop in pressure, causing the formation of bubbles that can damage the seal face. To prevent this, ensure the pump is properly primed and the inlet pressure is adequate.
Corrosion: Corrosion can occur due to exposure to corrosive materials, and it can cause the mechanical seal to fail prematurely. To prevent this, ensure the seal material is compatible with the fluid being pumped, and the seal is properly lubricated and installed.
Improper installation: Improper installation of the mechanical seal can lead to premature failure. To prevent this, ensure the seal is installed according to the manufacturer's instructions and with the proper tools.
Company Advantages
· horizontal bead mill manufacturers is more cost-effective and environment friendly.
· All parts of this product meet the required criteria.
· Seeing from the growing sales, the product has a rather promising application potential.
Company Features
· BOYEE (SHENZHEN) INDUSTRIAL TECHNOLOGY CO., LTD is a highly reliable producer for horizontal bead mill manufacturers.
· Our products obtain great reputation from the customers for its high quality, reasonable prices, and good designs.
· BOYEE always insists quality above all.
Application of the Product
Our horizontal bead mill manufacturers is widely used in various scenarios.
Based on the actual needs of our customers, we provide a one-stop solution for them with the purpose of rational allocation of Bead mill.
