Horizontal Bead Mill Manufacturers BOYEE,37-45

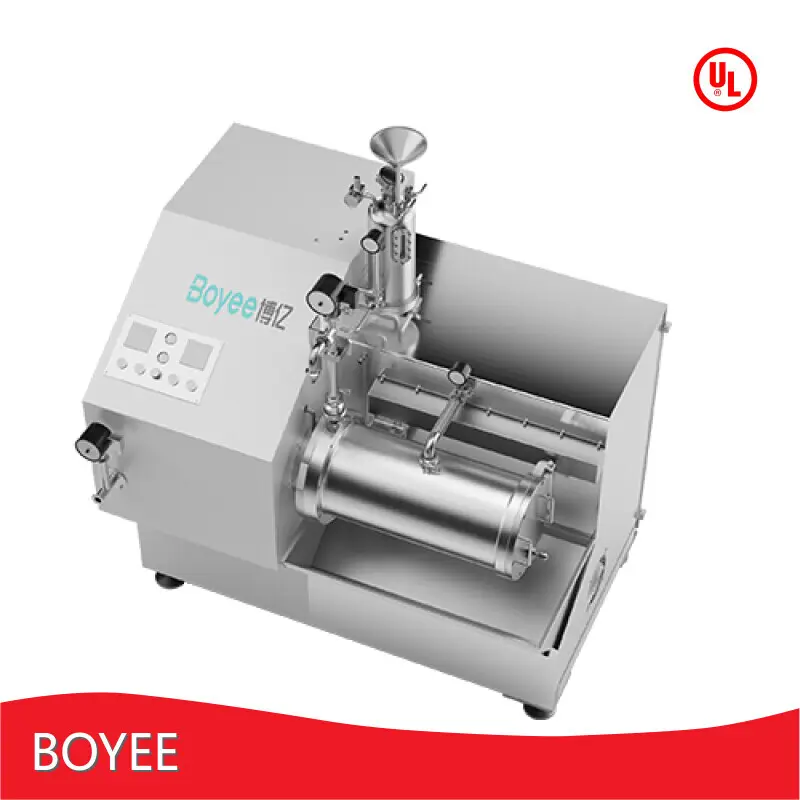

Product Display
Product Description
The BYZr model can be equipped with Boyee independently developed PurCeram all-ceramic technology and TurboMax turbo grinding structure. This combination reduces material contamination and enables continuous circulation grinding.
Product Advantages
● Unique discharge method minimizes the occurrence of screen clogging.
● All-ceramic structure ensures no contamination of materials, resulting in a purer and finer grinding process.
● Flexible grinding, no damage to material morphology
● Suitable for higher viscosity materials
● Unique cooling system design
Product Parameters
| Model | Volume (L) | Power (KW) | Speed (r/min) | Media diameter (mm) | Weight (kg) | Size (mm) |
| BYZr-3L | 2.2 | 7.5 | 0-1450 | 0.3-1 | 468 | 1200×1050×1450 |
| BYZr-15L | 11 | 30 | 0-1860 | 0.3-1 | 1205 | 1600×1350×1850 |
| BYZr-30L | 22 | 37-45 | 0-1325 | 0.3-1.2 | 1425 | 1750×1350×1850 |
Product Features
The first independently developed all-ceramic nano bead mill in China, which innovative mill features a fully ceramic structure from the rotor to the grinding chamber, which minimizes material contamination, ensures material purity, and extends the equipment's lifespan.
Product Application
Faqs
Bead mills are commonly used in the production process of lithium iron phosphate (LiFePO4) due to their ability to finely grind and disperse the components of the battery material. In the production of LiFePO4, the bead mill is used to grind the raw materials, including lithium iron phosphate, conductive carbon, and a binder, into a fine powder with a particle size of around 1-5 microns. The finely ground powder is then mixed with a solvent to form a slurry, which can be coated onto a current collector to form the cathode of the battery.
The use of a bead mill in the production of LiFePO4 is essential for achieving a high-quality and uniform battery material. The high shear forces generated by the grinding beads help to break up any agglomerates in the raw materials, resulting in a more uniform particle size distribution and improved electrochemical performance of the battery.
Company Advantages
· BOYEE horizontal bead mill manufacturers is delicately designed and manufactured to meet international standards.
· It has been tested by the harsh international first-class inspection standards.
· With trustworthy cooperation partners, BOYEE ensures the fast delivery time.
Company Features
· As a leading enterprise specializing in manufacturing horizontal bead mill manufacturers, BOYEE (SHENZHEN) INDUSTRIAL TECHNOLOGY CO., LTD has an outstanding capacity in this field.
· We are proud to have an excellent technical team to produce horizontal bead mill manufacturers with outstanding performance.
· To create a healthy world, firstly, we will responsibly handle wastes in line with requirements; secondly, we will make all efforts to cut energy waste and conserve resources during the production processes.
Application of the Product
BOYEE's horizontal bead mill manufacturers can be used in different industries to meet the needs of customers.
According to different needs of customers, we could customize comprehensive and efficient solutions for them.
