Custom Bead Mill 3377 BOYEE
Company Advantages
· To catch up with the fashion trends in market, bead mill is designed in a very fashionable way.
· The product is assured to meet the highest quality standards in the industry.
· BOYEE (SHENZHEN) INDUSTRIAL TECHNOLOGY CO., LTD will provide professional guidance for use of bead mill.

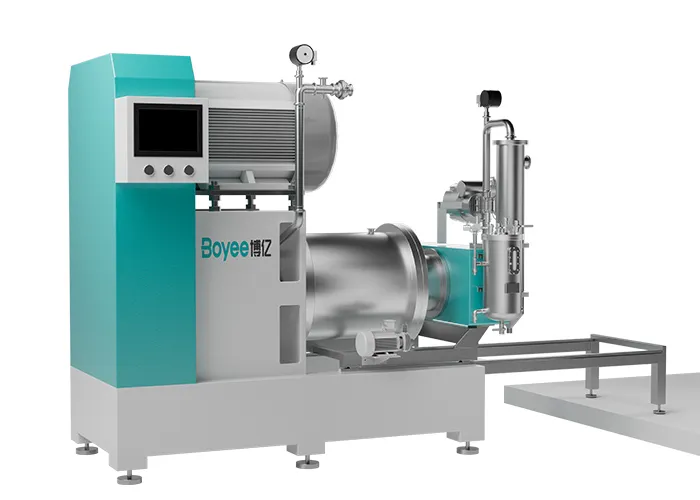

Product Display
Product Description
Specially designed for low viscosity ultra-fine grinding and dispersion, equipped with dual power, so that the material grinding and separation of independent operation, no blockage, excellent cooling performance, reduce equipment losses and improve production efficiency
Product Advantages
l Innovative centrifugal discharge
l Independent operation of material grinding and separation
l Applicable for low viscosity products
l Grinding media at a minimum of 0.05mm
l Optional turbine type and rod-pin type grinding system
l More refined grinding and dispersion effect
l Excellent cooling performance
l Various materials to meet individual needs
l Easier to be operated and cleaned
Product Parameters
| Model | Volume（L） | Power（kW） | Speed（r/min） | Media diameter（mm） | Weight（kg） | Size（mm） |
| LMM-3L | 3 | 7.5 | 0-1450 | 0.1-1 | 800 | 1400×1100×1680 |
| LMM-10L | 10 | 18.5 | 0-1460 | 0.05-1 | 1500 | 1800×1200×1550 |
| LMM-30L | 30 | 45 | 0-1000 | 0.05-1 | 2100 | 1800×1300×1800 |
| LMM-60L | 58 | 75 | 0-776 | 0.05-1 | 2800 | 3290×1478×1950 |
| LMM-90L | 98 | 75-90 | 0-776 | 0.05-1 | 3377 | 3290×1478×1950 |
| LMM-150L | 120-180 | 160 | 0-627 | 0.05-1 | 5600 | 4500×1700×2400 |
| LMM-400L | 400 | 315 | 0-927 | 0.05-1 | 8600 | 4600×1600×2400 |
Product Features
Our LMM series sand mill helps dispel frets over clogging the separation net during continuous running of the operation.
The LMM series innovatively applies a filter-free separation system design to separate materials and grinding materials in a dynamic centrifugal manner. It can greatly improve stability and uniformity of discharge, and your worry over net clogging can be dispelled.
Product Application
Faqs
The bead mill is a type of grinding equipment that works by using small beads or grinding media to reduce the particle size of a material. Here is a general overview of how a bead mill works:
-The material to be ground is placed in a container or vessel, called the grinding chamber, along with the grinding media. The grinding media can be made of various materials, such as glass, ceramic, or steel, and come in different sizes and shapes.
-The grinding chamber is then closed and sealed to prevent the material from escaping.
-The motor of the bead mill rotates the agitator shaft, which causes the grinding media to move and collide with each other and the material in the grinding chamber. This movement creates shear forces and impact forces that break down the material into smaller particles.
-As the material is ground and dispersed, it flows out of the grinding chamber and into a collection vessel, such as a tank or container.
-The particle size and dispersion of the material can be controlled by adjusting various parameters, such as the speed of the agitator shaft, the size and shape of the grinding media, and the residence time of the material in the grinding chamber.
Overall, the bead mill provides a highly efficient and effective method for grinding and dispersing a wide range of materials, including pigments, dyes, pharmaceuticals, and nanomaterials.
The grinding chamber of a bead mill typically has a cylindrical or conical shape and is filled with grinding media that is about 1-2 mm in diameter. The grinding media is usually made of glass, ceramic, or metal and can come in different shapes, such as spherical, cylindrical, or irregular. The grinding media is chosen based on the properties of the material to be ground and the desired particle size.
The material to be ground is introduced into the grinding chamber, along with a liquid, such as water or a solvent. The liquid serves as a carrier for the material and helps to distribute it evenly throughout the grinding chamber. The amount of liquid used depends on the viscosity of the material and the desired particle size.
The agitator shaft of the bead mill is typically equipped with discs or pegs that rotate at high speed, causing the grinding media to move and collide with each other and the material in the grinding chamber. The collisions create shear forces and impact forces that break down the material into smaller particles.
The size of the particles is determined by the residence time of the material in the grinding chamber, the speed of the agitator shaft, and the size and shape of the grinding media. The longer the material stays in the grinding chamber and the faster the agitator shaft rotates, the smaller the particle size.
As the material is ground and dispersed, it flows out of the grinding chamber and into a collection vessel, such as a tank or container. The liquid can be recycled back into the grinding chamber to ensure that the material is evenly distributed and to maintain a consistent particle size.
In summary, a bead mill works by using grinding media to create shear forces and impact forces that break down the material into smaller particles. The particle size can be controlled by adjusting various parameters, such as the speed of the agitator shaft, the size and shape of the grinding media, and the amount of liquid used.
Company Features
· BOYEE (SHENZHEN) INDUSTRIAL TECHNOLOGY CO., LTD is a global innovation company that never stops inventing. We have been providing high-quality bead mill in the industry.
· Our experienced team has been persistently researching and developing bead mill in order to enhance the strength of BOYEE. From the selection of suppliers to shipment, BOYEE has been strictly controlled each process to ensure the quality of each bead mill.
· We value our customers. To some extent, their satisfaction is at the forefront of our success. At all times we are courteous and professional giving our customers the free choice of which way they wish to go with regards to budget and service.
Product Details
With a focus on details, BOYEE strives to create high-quality bead mill.
Application of the Product
Our bead mill meets the needs of multiple industries and fields.
We always focus on meeting customers' needs and we are dedicated to providing customers with comprehensive and excellent solutions.
Product Comparison
Compared with other products in the same category, BOYEE's bead mill has the following advantages.
Enterprise Advantages
Our company has a pioneering and innovative team. It consists of highly efficient, professional and skilled employees and leaders proficient in management.
In addition to the high-quality products, our company also establishes a sound after-sales service system to solve all kinds of problems for customers in time.
Our company always insists on the business philosophy of 'winning the market with quality and gaining the reputation with service'. All of us should struggle hard to achieve development step by step, and pursue excellence and innovation in a practical and diligent attitude. All that brings us a brand new attitude, leading our company's development.
Founded in BOYEE has always been insisting on the brand development for years. Now we become a leader in the industry with relatively high brand recognition.
BOYEE's products are exported to many countries in Europe, Oceania, Africa, and America.
