BestBOYEE Glass Bead Mill - 30
Product details of the glass bead mill
Product Overview
BOYEE glass bead mill is manufactured through superior manufacturing processes. It varies from the shapes of glass bead mill including oval, circle and so on. BOYEE's glass bead mill can play an important role in various fields. We are a BOYEE (SHENZHEN) INDUSTRIAL TECHNOLOGY CO., LTD dealing with glass bead mill.
Product Information
With a focus on every detail of glass bead mill, we strive to create high-quality products.
Product Display
Product Description

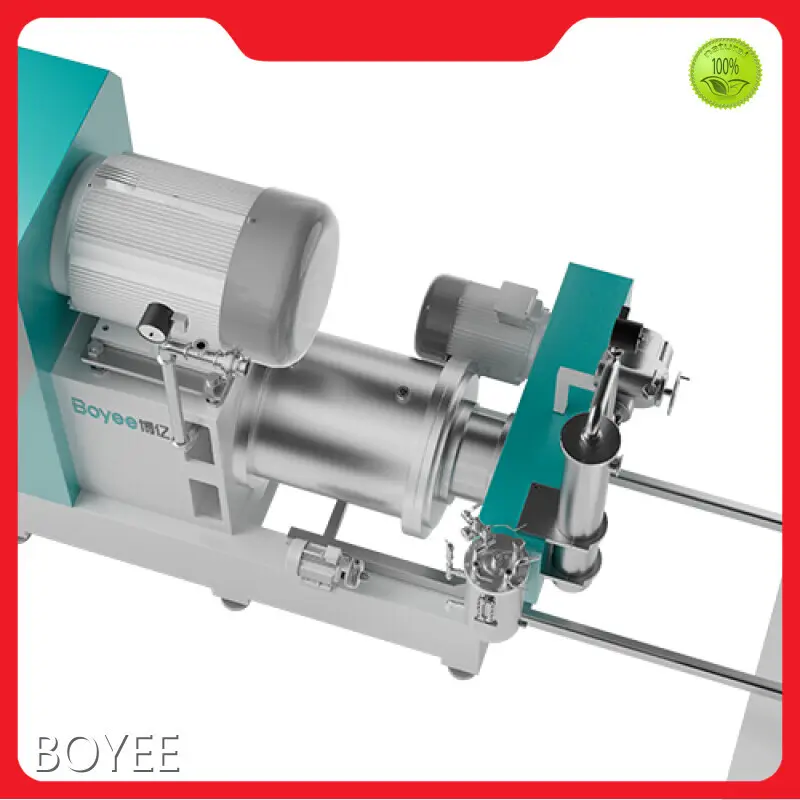

Specially designed for low viscosity ultra-fine grinding and dispersion, this mill is equipped with dual-drive technology, allowing independent operation of material grinding and separation to prevent blockages. It can be equipped with Boyee TurboMax turbo or rod pin grinding structure, enabling even finer grinding results.
Product Advantages
● Ultra-fine grinding and dispersion for low viscosity materials.
● Independent operation of material grinding and separation.
● The minimum size of the grinding media can reach 0.05mm.
● Optional turbo and rod pin grinding systems
●A variety of grinding chamber and structural component materials are available to meet your specific needs.
Product Parameters
| Model | Volume（L） | Power（kW） | Speed（r/min） | Media diameter（mm） | Weight（kg） | Size（mm） |
| LMM-3L | 3 | 7.5 | 0-1450 | 0.1-1 | 800 | 1400×1100×1680 |
| LMM-10L | 10 | 18.5 | 0-1460 | 0.05-1 | 1500 | 1800×1200×1550 |
| LMM-30L | 30 | 45 | 0-1000 | 0.05-1 | 2100 | 1800×1300×1800 |
| LMM-60L | 58 | 75 | 0-776 | 0.05-1 | 2800 | 3290×1478×1950 |
| LMM-90L | 98 | 75-90 | 0-776 | 0.05-1 | 3377 | 3290×1478×1950 |
| LMM-150L | 120-180 | 160 | 0-627 | 0.05-1 | 5600 | 4500×1700×2400 |
| LMM-400L | 400 | 315 | 0-927 | 0.05-1 | 8600 | 4600×1600×2400 |
Product Features
The ultra-fine centrifugal nano bead mill can be paired with Boyee TurboMax turbo or rod pin grinding system, achieving higher grinding fineness with smaller grinding media.
Product Application
Faqs
The diaphragm pump tube flushing tank is an important component of the bead mill cooling system. Its main function is to clean and flush the diaphragm pump tubes, which are used to circulate cooling water through the bead mill.
During the operation of the bead mill, impurities such as dust and dirt particles can accumulate in the cooling water, which can lead to clogging of the diaphragm pump tubes. This can affect the cooling efficiency of the bead mill and even cause damage to the equipment.
The function of the diaphragm pump tube flushing tank is to clean and flush the diaphragm pump tubes to prevent blockages and improve the efficiency of the pump. It is a small container or tank that is connected to the pump's tubing system and filled with a cleaning solution. The pump is then run with the cleaning solution to flush out any residue or buildup that may be present in the tubing. This is particularly important when switching between different types of fluids or when changing the pump's tubing, as residual material may remain in the tubing and contaminate the new fluid being pumped. The diaphragm pump tube flushing tank helps ensure that the pump is clean and ready for use, and that the fluid being pumped is free of contaminants.
The diaphragm pump tube flushing tank is also important for maintaining the integrity and longevity of the diaphragm pump. Buildup or residue in the tubing can cause damage to the pump's diaphragm or other components, leading to reduced efficiency and increased wear and tear on the pump. Regular cleaning and maintenance of the tubing with a flushing tank can help prevent these issues and prolong the life of the pump. Additionally, using the flushing tank with a suitable cleaning solution can help prevent corrosion and buildup in the tubing, further improving the longevity and reliability of the pump.
Company Information
BOYEE (SHENZHEN) INDUSTRIAL TECHNOLOGY CO., LTD is located in shen zhen. We are mainly in charge of the production in Bead mill. With the timely and efficient service concept, our company sincerely provides quality services for our clients. We are looking forward to developing a better future with you.
