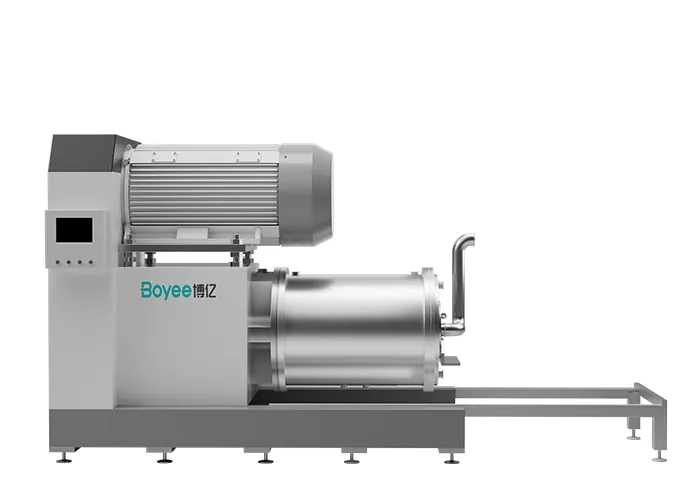

Bead Mill for Sale NMM-3L BOYEE Brand 0-1450

Size (mm):
1400×1100×1680
Weight (kg):
800
Media diameter (mm):
≥0.2
Speed (r/min):
0-1450
Model:
NMM-3L
Inquiry

Product Display

NMM-90L滤网-主图 (1) (2)
NMM-90L滤网-主图 (1) (2)
NMM-90L滤网-主图 (2) (2)
NMM-90L滤网-主图 (2) (2)
NMM-90L滤网-主图 (4) (2)
NMM-90L滤网-主图 (4) (2)
0 (3)

Product Description

The screen-type bead mill, which is favored for handling high-viscosity materials, overcomes the traditional clogging problem. It is equipped with Boyee's independently developed TurboMax turbine structure, providing excellent operational stability, higher equipment flow, improved production efficiency, and reduced costs.

Product Advantages

● Higher flow

● High-quality handling capability for high-viscosity materials.

● Optional TurboMax turbine and rod pin grinding system.

● Optional ceramic, polymer, and alloy material components.

● Longer screen lifespan.

● All models meet the requirements from laboratory to large-scale production.

● Daily maintenance is simple and quick.

● Low noise impact.

产品描述插图3 (2)

Product Parameters

Model Volume (L) Power (KW) Speed (r/min) Mediadiameter (mm) Weight (kg) Size (mm)
NMM-3L 3 7.5 0-1450 ≥0.2 800 1400×1100×1680
NMM-10L 10 18.5 0-1460 ≥0.2 1280 1800×1200×1550
NMM-30L 30 45 0-1000 ≥0.2 1850 1800×1300×1800
NMM-60L 58 75 0-776 ≥0.2 2480 3290×1478×1950
NMM-90L 98 75-90 0-776 ≥0.2 3050 3290×1478×1950
NMM-150L 120-180 160 0-627 ≥0.2 5280 4500×1700×2400
NMM-400L 400 280-315 0-460 ≥0.2 8600 4600×1600×2400

Product Features

Boyee TurboMax patented turbine and rod-pin grinding system can deliver energy to the grinding medium before achieving nano-level grinding and dispersion effects.

Product Application

化工
Chemical industry
MLCC
MLCC
打印油墨 (2)
Printing ink
未标题-1
Battery
未标题-2
Cosmetics
医药
Medicine

Faqs

Difference between dynamic discharge and static discharge

In a bead mill, the terms "dynamic discharge" and "static discharge" refer to two different methods of discharging the ground material from the mill.

Dynamic discharge, also known as pump or forced discharge, involves using a pump to force the material out of the mill through a discharge valve. This method is typically used with higher viscosity materials or materials that tend to stick to the walls of the mill, as it can help ensure a more complete discharge of the material and prevent clogging.

Static discharge, on the other hand, relies on gravity to discharge the material from the mill. In this method, the mill is tilted or inclined at an angle, allowing the ground material to flow out through a discharge port located at the bottom of the mill. This method is typically used with lower viscosity materials or materials that are less likely to stick to the walls of the mill, as it may not be as effective at ensuring a complete discharge of the material.

Overall, the choice of discharge method depends on the specific characteristics of the material being processed and the requirements of the application. Both dynamic and static discharge can be effective for different types of materials and applications, and it's important to choose the method that will provide the best results for your specific situation.

One important factor to consider when choosing between dynamic and static discharge is the viscosity of the material. Materials with higher viscosity may require dynamic discharge to ensure a more complete discharge of the material and prevent clogging. However, dynamic discharge may not be as effective with lower viscosity materials, which may flow more easily through a static discharge system.

Another factor to consider is the particle size of the material. Materials with larger particle sizes may require dynamic discharge to ensure that the larger particles are properly ground and discharged from the mill. Conversely, smaller particle sizes may be more effectively discharged through a static discharge system.

The specific requirements of the application may also play a role in determining the best discharge method. For example, if a continuous flow of material is required, dynamic discharge may be more appropriate. However, if batch processing is being used, static discharge may be more convenient.

Another important factor to consider when choosing between dynamic and static discharge is the nature of the material being processed. Some materials may be more prone to clogging or buildup within the mill, which can affect the efficiency of the grinding process and the effectiveness of the discharge method.

For example, materials that contain high levels of solids or other impurities may be more prone to clogging, making dynamic discharge more necessary. In contrast, materials that are more homogenous and free of impurities may be better suited for static discharge.

The specific design of the bead mill can also play a role in determining the most effective discharge method. Some bead mills may be specifically designed for dynamic discharge, while others may be better suited for static discharge.

Overall, the choice between dynamic and static discharge will depend on a variety of factors, including the nature of the material being processed, the design of the bead mill, and the specific requirements of the application. By carefully evaluating these factors and choosing the most appropriate discharge method, it's possible to optimize the performance of the bead mill and achieve the desired grinding results.


Company Advantages

· The design of BOYEE bead mill for sale turns out to be effective and compatible.

· Its quality will be checked out with 100% attention by our QC team.

· High efficient production of bead mill for sale contributes to the introduction of advanced machines.


Company Features

· BOYEE (SHENZHEN) INDUSTRIAL TECHNOLOGY CO., LTD is known as a dependable manufacturer based in China. We are widely recognized for providing high quality bead mill for sale.

· Through professional technology, our bead mill for sale have received much more praises from customers.

· Undertaking social responsibility initiatives is truly a win for our company. We believe that true success comes when everyone focuses on the bigger picture and here, the bigger picture isn't just about manufacturing products—it's about trying to change the world for the better.


Application of the Product

BOYEE's bead mill for sale can be used in multiple scenes.

While providing quality products, BOYEE is dedicated to providing personalized solutions for customers according to their needs and actual situations.
